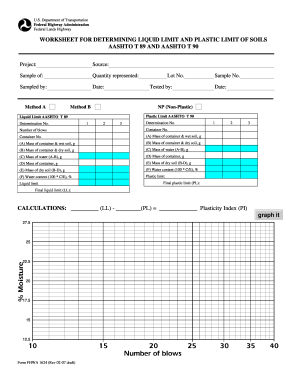

The Worksheet for Determining Liquid Limit and Plastic Limit of Soils is an essential document used in geotechnical engineering to assess soil properties. This guide provides step-by-step instructions to help users fill out the form efficiently and accurately in an online format.

Follow the steps to complete the form accurately.

1. Click ‘Get Form’ button to access the form and open it in the editing interface.
2. In the 'Project' field, enter the name or identification of the project for which the soil testing is being conducted.
3. Fill in the 'Source' section with the location from where the soil sample is taken.
4. Indicate the type of sample in the 'Sample of' field (e.g., soil type).
5. Enter the quantity represented by the sample in the 'Quantity represented' box.
6. Note the name of the person who collected the sample in the 'Sampled by' field.
7. Record the date the sample was taken in the 'Date' field.
8. Choose either Method A or Method B for testing, and indicate which method was applied.
9. In the 'Sample No.' field, assign a unique identification number for the sample.
10. Re-enter the date in the designated area for clarity.
11. For each determination (1, 2, and 3), fill in the necessary calculations including mass of the container with wet soil, mass of dry soil, mass of water, etc.
12. Calculate the Water Content using the formula (100 * C/E) for each determination.
13. Determine the Plastic Limit and enter the values accordingly for each test.
14. Calculate and input the Final Plastic Limit (PL) and Final Liquid Limit (LL) values.
15. Complete the calculation for the Plasticity Index (PI) using the formula (LL - PL), and graph the results as needed.
16. Once all fields are filled adequately, save changes, download, print, or share the completed form as required.

Complete your documents online today for efficient soil testing outcomes.
