This guide provides clear, step-by-step instructions for filling out the Assembly Manual Of ZIPX Zero. Whether you are a first-time user or familiar with assembly manuals, this guide aims to assist you in the process of completing the form accurately and efficiently.

Follow the steps to fill out the Assembly Manual comprehensively.

1. Click ‘Get Form’ button to obtain the Assembly Manual and open it in the appropriate online editing platform.

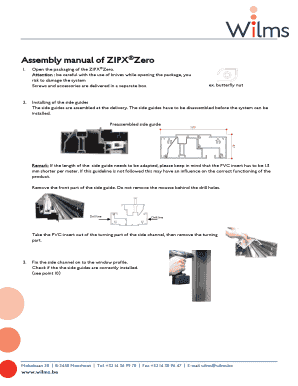

2. Begin by carefully opening the packaging of the ZIPX®Zero. Ensure that you exercise caution while using any cutting tools to prevent damage to the system. The screws and accessories will be found in a separate box.
3. Next, install the side guides. Begin by disassembling the pre-installed side guides. Take note that if the length of the side guide requires adjustment, the PVC insert must be shortened by 1.3 mm for every meter to ensure proper functionality.
4. Fix the side channel onto the window profile, then verify the installation of the side guides to ensure they are correctly positioned.
5. Remove the underpart of the box and position the box atop the installed side guides, ensuring the space for the motor cable is available before the side guide is secured.
6. Connect the motor and raise the fabric approximately 5 cm to facilitate the next steps.
7. Reattach the turning part of the side guide, ensuring that it is behind the locking plate for correct installation.
8. Lower the bottom bar by 5 cm, then slide the PVC insert over the zip of the fabric and place it into the side guide, ensuring the 'L' and 'R' markings are aligned correctly.
9. To finalize the assembly of the side guide, reposition the front plate, securing it with the included Allen screws and butterfly nuts, ensuring proper alignment during installation.
10. Assemble the underpart of the box and turn it for fixation on both sides.
11. Conduct a thorough check to ensure the system operates correctly and the fabric tension is optimal by confirming the dimensions of the diagonals and parallels.
12. Once completed, you can save your changes, download, print, or share the Assembly Manual as necessary.

Start filling out the Assembly Manual online to ensure your ZIPX Zero is correctly assembled.
