Get Clevis Cut Sheet - Haydon Bolts Inc

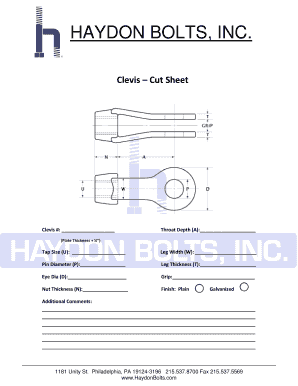

Filling out the Clevis Cut Sheet from Haydon Bolts Inc is a straightforward process designed to gather essential specifications for your clevis needs. This guide will walk you through each section of the form to ensure you complete it accurately and efficiently.

Follow the steps to complete the Clevis Cut Sheet online.

1. Click ‘Get Form’ button to obtain the form and open it in the editor.
2. In the first field, labeled 'Clevis #', enter the unique identifier for the clevis you are requesting.
3. For 'Throat Depth (A)', input the throat depth measurement, which is the plate thickness plus an additional ¼ inch.
4. In the 'Tap Size (U)' field, specify the size for the tap that corresponds with your requirements.
5. Enter the 'Leg Width (W)' by providing the measurement of the clevis leg width.
6. For 'Pin Diameter (P)', include the diameter required for the pin.
7. In the 'Leg Thickness (T)' field, specify the thickness measurement of the clevis leg.
8. Input the 'Eye Dia (D)', which refers to the diameter of the eye in the clevis.
9. Enter the grip specification in the 'Grip' field to define your gripping requirement.
10. In the 'Nut Thickness (N)' field, provide the thickness measurement for the nut.
11. Select a finish for your clevis from the options available: Plain or Galvanized.
12. Utilize the 'Additional Comments' section to add any further specifications or notes relevant to your order.
13. Once you have filled out all necessary fields, you can choose to save your changes, download, print, or share the form as needed.

Complete your Clevis Cut Sheet online now for a seamless ordering experience.
