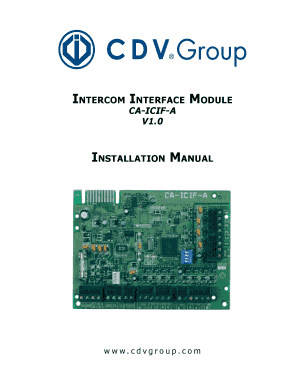

The Intercom Interface Module (CA-ICIF-A) serves as a critical link between a standard building intercom and various access and elevator control systems. This guide provides step-by-step instructions to help users efficiently complete the form online, ensuring proper configuration and accessibility for building occupants.

Follow the steps to complete the Intercom Interface Module form.

1. Click the ‘Get Form’ button to access the Intercom Interface Module form and open it in the designated editor.
2. Review the form's introduction section to understand the purpose and functionality of the CA-ICIF-A module. This will help you confirm that the form is relevant to your needs.
3. Fill in the overview details of the CA-ICIF-A module, including its connection capabilities and intended use in multi-floor settings to keep the context clear.
4. Complete the serial interface port baud rate section by selecting the appropriate communication speed using the DIP switches. Options include 1200, 2400, 4800, and 9600 baud rates.
5. Configure the jumpers as per your system requirements. Specify if the module is at the start or end point of the E-bus network to ensure proper operation.
6. Provide hardware connection details, specifying connections to single and multiple intercom units. Ensure accuracy in describing how the module links to the Centaur controller.
7. Fill in programming details, selecting your preferred intercom type and ensuring that all settings match your system’s specifications.
8. Utilize the provided programming fields for configurations including Sentex Address ID, card format, reader port configuration, site code, and serial timeout as needed.
9. Once all necessary fields are filled, review the form for accuracy. Make any adjustments if necessary to ensure all details are correct before submission.
10. Finalize the process by saving changes, downloading a copy of the filled-out form, printing it for your records, or sharing it as needed.
