The Shure R89 User Guide provides essential information for users looking to replace the cartridge in their Shure Model 522 Base Station microphones. This guide will help you navigate the process of filling out the necessary details effectively and efficiently.
Follow the steps to complete your user guide accurately.
- Press the ‘Get Form’ button to access the Shure R89 User Guide and open it for editing.

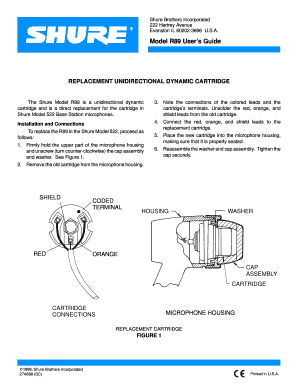

- Begin by reviewing the instructions for replacing the unidirectional dynamic cartridge. Familiarize yourself with the specific connections of the colored leads to the cartridge’s terminals.
- Carefully unsolder the red, orange, and shield leads from the old cartridge, ensuring you remember their placements for reconnection.
- Connect the new replacement cartridge by attaching the red, orange, and shield leads to their corresponding terminals.
- To replace the R89 in the Shure Model 522, firmly hold the upper part of the microphone housing and unscrew the cap assembly and washer by turning counter-clockwise.
- Remove the old cartridge from the microphone housing to create space for the new component.
- Insert the new cartridge into the microphone housing, ensuring it is correctly seated to avoid any operational issues.
- Reassemble the washer and cap assembly, then tighten the cap securely to complete the installation.
- Once you have completed the guide, ensure all changes are saved, and proceed to download, print, or share the document as required.
Complete your documentation process online today to ensure a seamless experience with your Shure Model R89.
