Filling out the MODEL: T101 online is a straightforward process that ensures you correctly set up your time switch. This guide provides clear, step-by-step instructions to assist you in completing the form efficiently.

Follow the steps to fill out the MODEL: T101 form accurately.

1. Click ‘Get Form’ button to access the form and open it in the editor.
2. Review the specifications of the 24-hour dial time switch. Ensure you familiarize yourself with the electrical specifications, including voltage, current ratings for resistive and inductive loads, and pump and motor specifications.

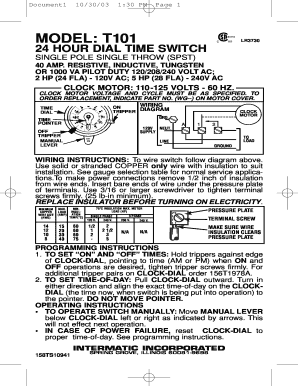

3. Locate the wiring instructions section. Follow the wiring diagram illustrated in the form to ensure proper connections using solid or stranded copper wire with appropriate insulation.
4. Enter the necessary details for the programming instructions. This includes setting 'On' and 'Off' times by holding the trippers against the clock dial and aligning them with the desired times.
5. Adjust the time-of-day by pulling the clock dial outward and aligning it exactly with the current time using the pointer, making sure not to move the pointer itself.
6. Finish by reviewing all entries for accuracy. Ensure wiring connections and programming are correct as per the form's instructions.
7. Once all details are completed, you can save changes, download, print, or share the form as needed.
