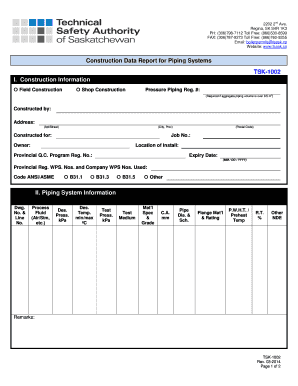

Get Construction Data Report For Piping Systems

Filling out the Construction Data Report For Piping Systems is a crucial part of ensuring compliance with relevant regulations. This guide provides clear instructions to help you navigate the form effortlessly.

Follow the steps to complete your construction data report online.

1. Click ‘Get Form’ button to obtain the form and open it in your online editor.
2. In the Construction Information section, select whether the construction is field or shop-based. Enter the required Pressure Piping Registration number if the aggregate piping volume exceeds 0.5 m³.
3. Fill out the details for the construction, including the name of the entity that constructed the piping, their address, city, province, postal code, and the job number. Specify the owner's name and the installation location.
4. Include the Provincial Quality Control Program Registration Number and its expiry date in the specified format (MM/DD/YYYY). List the relevant Provincial and Company Welding Procedure Specifications (WPS) used, as per the codes ANSI/ASME B31.1, B31.3, B31.5, or other.
5. In the Piping System Information section, document the drawing and line number, the type of process fluid (e.g., air or steam), and the design pressure in kPa.
6. Record the design temperature (minimum and maximum), test pressure, and test medium used. Include material specifications and grades, the circumference area in mm, the additional pipe diameter and schedule.
7. Specify the flange material and rating, post-weld heat treatment or preheat temperature, and relative humidity percentage if applicable. Provide any other non-destructive examinations (NDE) performed and any remarks as necessary.
8. For the Certificate of Compliance, enter the date the report is being filled out, the contractor's name, and an authorized representative's name. Ensure that all statements reflect accurate information.
9. Complete the Certificate of Inspection by writing the name of the inspecting entity and confirming the inspection, followed by the date. Ensure both the owner's/client's inspector and the authorized inspector's dates are filled out.
10. After completing the form, you can save your changes, download a copy, print it for your records, or share it as required.

Start completing your Construction Data Report For Piping Systems online today.
