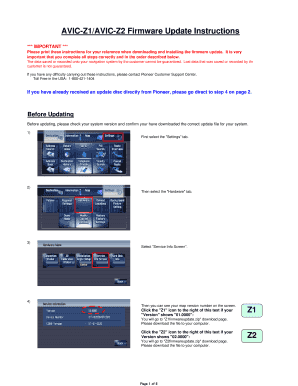

How to fill out the Pioneer Avic Z2 Update online
This guide provides a comprehensive overview of how to complete the Pioneer Avic Z2 Update online. Follow these instructions carefully to ensure a smooth and successful update process for your navigation system.
Follow the steps to complete the Pioneer Avic Z2 Update.
- Click the ‘Get Form’ button to obtain the form and open it in your editor.
- Verify your system version by selecting the 'Settings' tab, then the 'Hardware' tab, and finally the 'Service Info Screen' where you will view your map version number.
- Determine which version update you need by clicking the corresponding icon based on your version number: 'Z1' for version '01.0000' or 'Z2' for version '02.0000' to access the respective download page.
- After downloading the appropriate file to your computer, locate it and double-click to decompress it. Ensure you have a decompression utility like WinZip if necessary.
- Open the decompressed folder, named either 'Z2 firmware update' or 'Z1 firmware update', and find the 'AVICZ1_HD1' folder and 'Basefile.dat' file within it.
- Copy both the 'AVICZ1_HD1' folder and 'Basefile.dat' to a CD-R, ensuring they are on the top layer of the CD-R, which should be finalized with a single-session format.
- Insert the CD-R into your AVIC-Z1/Z2 system. The update process will automatically begin within one minute.
- Wait approximately 7-10 minutes for the update to complete. The system will reboot automatically once the update is finished.
- Confirm the installation was successful by pressing the [MENU] key, then selecting the 'Settings' tab, the 'HardwareVersion' tab, and pressing and holding the upper left corner of the screen to view the version info.
- Eject the CD-R from the system once the update has been confirmed.
Take the steps to complete your Pioneer Avic Z2 Update online today.
To update your Pioneer receiver firmware via USB, start by downloading the latest firmware from the Pioneer website. Once you have the file, transfer it to a USB drive formatted to FAT32. Insert the USB drive into your receiver, and access the firmware update option in the settings menu. This method allows you to easily perform a Pioneer Avic Z2 update, keeping your receiver up-to-date.
