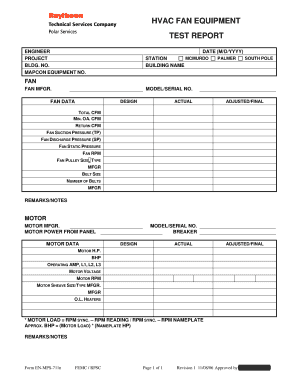

How to fill out the HVAC FAN EQUIPMENT TEST REPORT - Nsf online
Filling out the HVAC FAN EQUIPMENT TEST REPORT - Nsf online is an essential step in documenting and verifying fan performance data. This guide provides a clear and user-friendly approach to completing the form accurately and efficiently.
Follow the steps to complete the HVAC FAN equipment test report online.
- Click ‘Get Form’ button to obtain the form and open it for editing.
- Enter the project details in the 'ENGINEER', 'PROJECT', 'BLDG. NO.', and 'MAPCON EQUIPMENT NO.' fields. Ensure all information is accurate to facilitate proper record management.
- Fill in the 'DATE' field using the format M/D/YYYY. This information is crucial for tracking the timing of the test.
- Specify the 'BUILDING NAME' where the equipment is located, such as 'MCMURDO', 'PALMER', or 'SOUTH POLE STATION'.
- Under the ‘FAN’ section, complete the manufacturer and model details by filling in the 'FAN MFGR.' and 'MODEL/SERIAL NO.' fields.
- Input fan performance data by documenting 'TOTAL CFM', 'MIN. OA. CFM', 'RETURN CFM', 'FAN SUCTION PRESSURE', 'FAN DISCHARGE PRESSURE', 'FAN STATIC PRESSURE', 'FAN RPM', along with 'FAN PULLEY SIZE, TYPE' and 'BELT SIZE'.
- Repeat the process for the 'MOTOR' section, detailing the 'MOTOR MFGR.', 'MOTOR POWER FROM PANEL', and 'MODEL/SERIAL NO.'. Include 'BREAKER', 'MOTOR H.P.', 'BHP', 'OPERATING AMP', 'MOTOR VOLTAGE', 'MOTOR RPM', and 'MOTOR SHEAVE SIZE/TYPE'.
- Utilize the provided formulas where necessary for calculations, such as 'MOTOR LOAD' and 'APPROX. BHP', ensuring to provide any remarks or notes in the 'REMARKS/NOTES' fields.
- Once you have completed the form, review all entries for accuracy and completeness. Ensure no fields are left empty where the information is required.
- Finally, save your changes, and choose from the options to download, print, or share the completed report securely.
